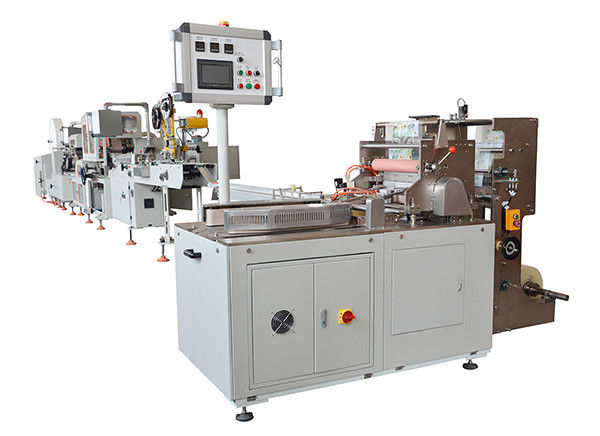

2.5Kw Pocket Tissue Machine Tissue Paper Production Line 80dB

(1) Single handkerchief unfold size:square: 200mm±2 mm            210mm±2 mm

(2) Single handkerchief Fold size:Mini: 72 mm±0.5 mm×53.5mm±0.5 mm (L*W)

                                       Standard: 105mm±0.5 mm×53.5 mm±0.5 mm (L*W)

(3) Side embossing is symmetrical and tolerance is 5 mm

4. Bundling Unit Specification

(1)  Packing speed:Design speed≤25mbaler/min, Product speed:≤20mbaler/min；

(2) Packing size: Length: 75mm-105mm；

     Thickness: 24±2mm；Width: 50mm±2mm；

     Bundling style: 2X3；2X4；2X5；2X6；

                              3X3；3X4；3X5；3X6.

(3) Power:supply:380V±38V, 50Hz±1Hz

(4) Total power:2.5Kw

(5) Main machine power:0.25Kw

(6) Main air pressure: 〉0.6Mpa

(7) Bundling unite size and weight:2300X1250X1450mm(L*W*H), 1000kg

5. Material requirements

(1) Parent paper roll:diameter≤φ1600mm,width 420mm,core diameter φ76mm

Gs 13.5～15.5g/m2(triple),16～18g/m2(double)

(2) Film :PE with thickness 0.045 mm,width 115mm, diameter ≤φ460 mm,core diameter φ76mm, dark color mark  (except green), size 4×12mm, equal distance (single film length)168±2mm；

(3) Label:width: 25±5mm, equal distance ≥2 mm, color should be clear different with color mark.

6. Other requirements

(1) Main power supply: 380V±38V,50HZ±1HZ; 24 VDC；

(2) Compressed air:pressure≥0.6 Mpa,flow rate≥48m3/h；

(3) Nagtive pressure:pressure≥0.06 Mpa,flow rate≥480m3/h(roots vacuum pum, no need water).
