Servo Control Toilet Roll Paper Packing Machine 80-168 Rolls Per Min

Servo Control Toilet Roll Paper Packing Machine 80-168 Rolls Per Min

  • High Light

    Servo Control toilet paper packing machine


    toilet paper packing machine 80 Rolls Per Min


    toilet roll packing machine 168 Rolls Per Min

  • Packing Material
    SPP(Thickness 1.8C)
  • Control System
    Servo Motor, Touch Screen, PLC Control, HMI
  • Packing Roll Diamter
  • Packing Roll Height
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Export Wooden Package
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability
    50 Sets Per Month

Servo Control Toilet Roll Paper Packing Machine 80-168 Rolls Per Min

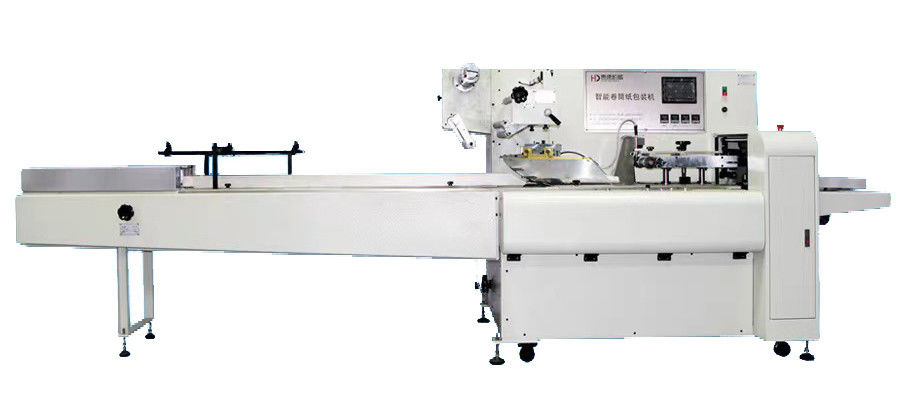

Servo Control Toilet Paper Roll Single Wrapping Machine 80-168 Rolls Per Min





Toilet Paper Roll Single Wrapping Machine is developed for automatic single wrapping of toilet paper rolls. It can connect with toilet paper roll rewinder and automatic log saw cutting machine or automatic band saw as well as bundle packing machine to make an fully automatic toilet paper roll production line.

The stable production speed can reach 80-168 pcs/min; Servo paper feeding and PLC control.



Technical Specification

Model YY-ZN180S Toilet Roll Single wrapping machine
Machine size 4000mm×1100mm×1500mm
Machine weight About 1000kg
Power needed 220v 50/60HZ
Total Power About 5.8KW
Motor for servo cutter(Delta) 1KW
Motor for material feeding (Delta) 0.75KW
Motor for material handling(Delta) 2sets/0.4KW
Maximum speed 180pcs/min
Minimum speed 60pcs/min
Normal speed 80-168pcs/min
Packing product With core or without core
Packing roll diameter 90-125mm
Packing roll height 80-120mm
Packing film roll Maximum width 440mm
Compressed air 0.4-0.8Mpa
Packing material SPP(Thickness 1.8C)




Servo Control Toilet Roll Paper Packing Machine 80-168 Rolls Per Min 0



1. Why choose YouYuan as the toilet paper roll single wrapping machine supplier?


Because we are professional toilet paper roll single wrapping machine with more than 15 years experience. And we have a dedicated team for your questions before sales and after sales process. We can give you a turn-key project solution for automatic toilet paper roll single wrapping.


2. Will you provide spare parts for the machines we buy from you?


Yes. we will provide you some consumable spare parts free of charge for about one year, and we will ship the consumable parts to you together with the machines. In the future, you can still buy the parts from us.


3. Where is your factory located? Can we visit your factory?


Our factory is located at the Pengzhou Industrial Park, Chengdu, China. We welcome you to visit our factory and see our machines any time.


After Sale Services


Spare Parts


YouYuan provides around-the-clock parts support to keep your business moving.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Expediting for non-stock parts requests
  • Professional team members dedicated to supporting your parts needs




We're here to get you started on the right foot.

  • Complete installation and start-up support

  • Start-up and calibration support

  • Training
