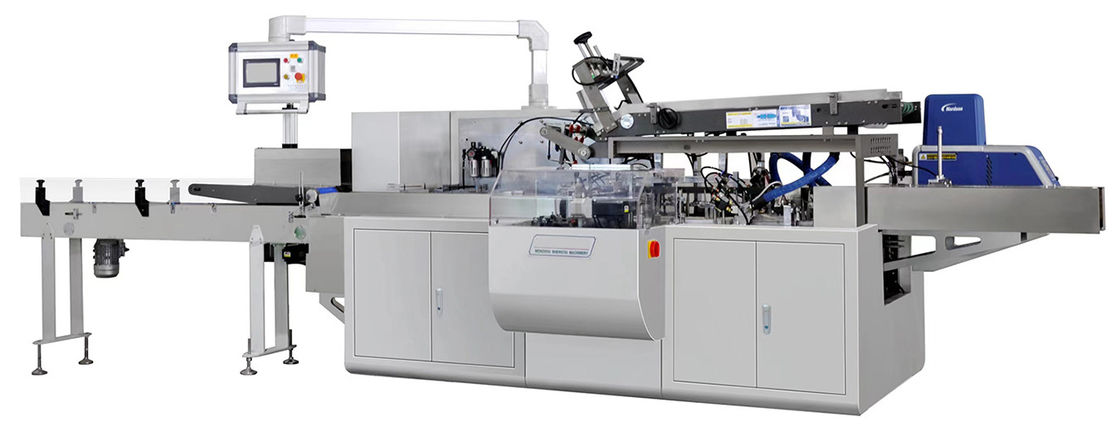

Cube Box Facial Tissue Packing Facial Tissue Machine High Speed 30-65boxes/Min
Description
This machine is developed for automatic cube box packing of facial tissue product. It can connect with facial tissue interfolder and automatic transfer unit as well as log saw cutting machine to make an automatic facial tissue production line.
The stable production speed can reach 30-65 boxes/min; Different packing sizes can be finished, it only takes 10-20mins to change to another packing size. Servo paper feeding and PLC control, easy operation by touch screen.
Equipped with international advanced glue machine(a nozzle of 0.3-0.36mm), the glue spread is little to save your production cost.
Technical Specification
| YY-100F Automatic Facial Tissue Box Packing and Sealing Machine | |
| Name | Technical parameters |
| Carton basis weight | 300-400g/㎡ |
| Maximum packing specification | L115mm×W115mm×H135mm |
| Packing speed | 30-65boxes/min |
| Glue hot melting machine power | 2.5KW |
| Main motor | 3.7KW |
| Total power | 6.2KW |
| Air pressure | 0.5-0.8Mpa |
| Air consumption | 120-160L/min |
| Power supply type | 3phase, 4wire, 380V, 50HZ |
| Machine size | L3250mm×W1650mm×H1800mm |
| Machine weight | 2100KG |
| Machine noise | ≤80Db |
| Main performance and features |
1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment. 2. Servo/step motor, Touch screen, PLC control system and HMI make operation more clear and convenient. With high automation degree, the machine is more user-friendly. 3. Compact and reasonable structure, simple operation and adjustment. 4. Automatic photocell detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent. 5. Easy to change to different sizes. Change of specifications does not need change of molds, but can be realized through adjustment. 6.Protection automatically for overloading. 7. Internationally advanced glue machine is equipped to save your production cost. |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment.
FAQ
Why should we choose YouYuan as the facial tissue cube box packing and sealing machine supplier?
YouYuan has been focusing on automatic facial tissue cube box packing and sealing machine for more than10 years. We have exported automatic facial tissue box packing and sealing machines to a lot of countries such as Mexico, Colombia, USA, Malaysia, Peru, Bahrain, Poland, Australia, Egypt,etc.
With strict quality requirements for materials, high-precision processing equipment, production in strict accordance with national environmental protection standards, strict control of the entire production process, to ensure that your equipment quality is excellent and stable, delivery cycle is guaranteed!
We have strong corporate strength, rich experience, good service, recognition of many customers, choose YouYuan, is your wise choice!
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your business moving.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Training
Our products are sold all over the world, you can rest assured.
