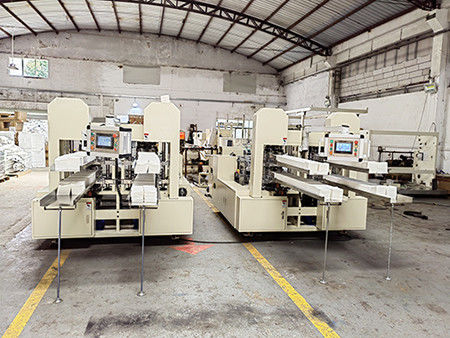

Table Napkin Machine Paper Napkin Machine 1/4 Quarter Fold 5000 Sheets per min
Description
YY-VI Paper Napkin Machine is developed to make quarter fold table napkins. It has full emboss or border emboss functions. It has 4 output decks with a high speed of 5000sheets per min. Big production capcity, small space occupied.
Technical Specification
| Name | Technical parameters |
| 1. Jumbo roll |
(1)GSM:13.5-18g/㎡double-ply paper, 18-25 g/㎡single-ply paper； (2)Jumbo roll size:φ1500×880mm/920mm/960mm； (3)Jumbo roll core diameter:φ76mm； |
| 2. Paper feeding |
(1)One feeding stand; wide flat belt feeding, buffering cylinder control; (2)Tension adjusting device; (3)Pneumatic loading jumbo roll; (4)Slitting device. |
| 3. Embossing station | One set of steel-to-wool/paper embossers(all Engraved emboss roller)(pattern are provided by buyer and seller confirms.); |
| 4. Folding part |
(1) Product size:(230×220/230/240)±2mm; (2) Folded size:(115×110/115/120)±2mm 1/4fold; (3) Clearance between folding roller and traction roll and is adjustable; (4)Ring-shape band saw cutting; (5)Production speed:0-280m/min(0-4800sheets/min); (6)Left and right two-deck output (7)brush-type static eliminator. |
| 5. Controlling part |
(1) Main motor frequency speed control; (2) Auto-counting function(1—999pieces); (3) Stop the machine when paper breaks; (4) Emergency stop; (5) Power needed: AC440V 60HZ 7.5KW; (6) Air pressure:0.5Mpa(Buyer prepares). |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin machines running.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
Our products are sold all over the world, you can rest assured.
