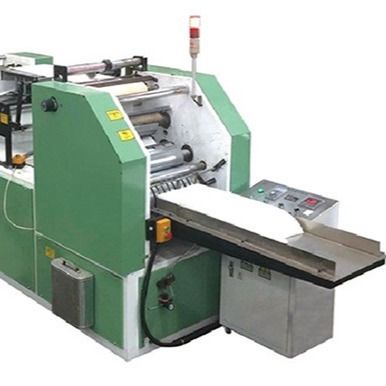

YouYuan Pneumatic Counting Multi Size Paper Napkin Machine 5.5KW

YouYuan Pneumatic Counting Multi Size Paper Napkin Machine 5.5KW

  • High Light

    Paper Napkin Machine 5.5KW

    ,

    Pneumatic Counting multi size paper napkin machine

    ,

    multi size paper napkin machine 5.5KW

  • Stable Production Speed
    600-800sheets Per Min
  • Safe Guarding
    Sensors With Safety Micro Switches Mounted
  • Finished Size
    Tall 95mmx(low 70mm)x85mm
  • Noise
    Less Than 80dB
  • Place of Origin
    China
  • Brand Name
    YouYuan
  • Certification
    CE
  • Model Number
    YY-VI
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Export Wooden Package
  • Delivery Time
    60 days
  • Payment Terms
    T/T
  • Supply Ability
    20 sets every two months

YouYuan Pneumatic Counting Multi Size Paper Napkin Machine 5.5KW

Low Fold Paper Napkin Machine Pneumatic Counting 600-800 Sheets Per Min





Description



Low Fold Paper Napkin Machine is developed for customers who want to make tall or low fold napkin tissue products. Compact design and easy adjustment help operators to have full control of functionality and production of the machine. Full-face embossing (standard/optional).



Technical Specification



YY-VI Tall Fold Napkin Machine
Folded size Tall 95(low 70)×Width 85±2mm
Open size 330×330±2mm
Parent roll size 660×Ф1000mm
Unwinding Flat belt feeding, AP Variable speed wheel stepless regulation
Emboss unit Steel to wool emboss, buyer and seller confirm the emboss design(the steel roller has the heating function).
Counting Automatic counting(Pneumatic)
Speed 600-800 sheets per min
Power needed 5.5KW Variable speed regulation, Vacuum pump 11KW.



Our Production Process and Delivery to Customer



We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment.







YouYuan Pneumatic Counting Multi Size Paper Napkin Machine 5.5KW 0



FAQ



1. Why choose YouYuan as the low fold paper napkin machine supplier?



Because we are professional low fold paper napkin machine manufacturer with more than 15 years experience. And we have a dedicated team for your questions before sales and after sales process. We can give you a turn-key project solution for low fold paper napkin machine.



2. Will you provide spare parts for the machines we buy from you?



Yes. we will provide you some consumable spare parts free of charge for about one year, and we will ship the consumable parts to you together with the machines. In the future, you can still buy the parts from us.



3. Where is your factory located? Can we visit your factory?



Our factory is located at the Pengzhou Industrial Park, Chengdu, China. We welcome you to visit our factory and see our machines any time.



After Sale Services



Spare Parts

YouYuan provides around-the-clock parts support to keep your business moving.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Immediate response for non-stock parts requests
  • Professional team members dedicated to supporting your parts needs



Installation



We're here to get you started on the right foot.

  • Complete installation and start-up support

  • Start-up and calibration support

  • Staff training
