1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min

1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min

  • High Light

    Paper Napkin Machine 300m/min


    1/4 Fold paper serviette making machine


    paper serviette making machine 300m/min

  • Stable Production Speed
  • Safe Guarding
    Sensors With Safety Micro Switches Mounted
  • Product Size
    240x240mm(folded 120x120mm) Other Sizes Please Order
  • Machine Type
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Export Wooden Package
  • Delivery Time
  • Payment Terms
  • Supply Ability
    20 sets every two months

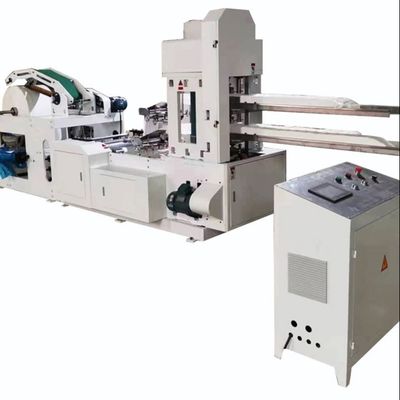

1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min

Cocktail Napkin Machine Paper Napkin Machine 240x240mm Automatic Counting





Quater Fold Serviette machine is developed for customers targeting high production capacity and excellent napkin products.


This napkin tissue machine can run at the speed of 300 meters per min(2600sheets per min). Web guide (optional), full-face embossing (standard/optional), edge embossing(standard/optional), 1 or 2 colors Logo printing(optional). ¼ (standard), 1/6(optional ), 1/8 (optional) folding types are available.


Compact design and easy adjustment help operators to have full control of functionality and production of the machine.


Technical Specification


1. Jumbo roll

(1)GSM:13.5-18g/㎡double-ply paper, 19-25 g/㎡single-ply paper;

(2)Jumbo roll size:φ1500×480mm;

(3)Jumbo roll core diameter:φ76mm;

2. Paper feeding

(1)One feeding stand; wide flat belt feeding, buffering cylinder control;

(2)Tension adjusting device;

(3)Pneumatic loading jumbo roll;

(4)Slitting device.

3. Embossing station One set of steel-to-wool embossers(Steel emboss roller is laser engraved)(pattern is provided by buyer and seller confirms.);
4. Folding part

(1) Product size:(240×240)±2mm;

(2) Folded size:(120×120)±2mm 1/4fold;

(3) Clearance between folding roller and traction roll and is adjustable;

(4) Ring-shape band saw cutting;

(5)Production speed:0-300m/min(0-2600sheets/min);

(6)Upper and down two-deck output;

(7)brush-type static eliminator.

5. Controlling part

(1) Main motor frequency speed control;

(2) Auto-counting function(1—999pieces);

(3) Stop the machine when paper breaks;

  (4) Emergency stop;

(5) Power needed: AC380V 50HZ 4KW;

(6) Air pressure:0.5Mpa(Buyer prepares).

1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min 0

1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min 1


Our Production Process and Delivery to Customer


We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer before packaging and shipment.



1/4 Fold Paper Serviette Making Paper Napkin Machine 300m/Min 2




1. Why choose YouYuan as the cocktail napkin tissue machine/paper napkin machine supplier?


Because we are professional cocktail napkin tissue machine/paper napkin machine manufacturer with more than 15 years experience. And we have a dedicated team for your questions before sales and after sales process. We can give you a turn-key project solution for cocktail napkin tissue machine/paper napkin machine.


2. Will you provide spare parts for the machines we buy from you?


Yes. we will provide you some consumable spare parts free of charge for about one year, and we will ship the consumable parts to you together with the machines. In the future, you can still buy the parts from us.


3. Where is your factory located? Can we visit your factory?


Our factory is located at the Pengzhou Industrial Park, Chengdu, China. We welcome you to visit our factory and see our machines any time.


After Sale Services


Spare Parts

YouYuan provides around-the-clock parts support to keep your business moving.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Expediting for non-stock parts requests
  • Professional team members dedicated to supporting your parts needs




We're here to get you started on the right foot.

  • Complete installation and start-up support

  • Start-up and calibration support

  • Staff training
