PLC Control Facial Tissue Paper Machine Automatic Transfer 14 Logs Per Min

PLC Control Facial Tissue Paper Machine Automatic Transfer 14 Logs Per Min

  • High Light

    PLC Control facial tissue paper machine


    facial tissue paper machine 14 Logs Per Min


    PLC Control facial tissue machine

  • Stable Production Speed
    14 Logs Per Min
  • Paper Log Length
    1250-2000mm(other Sizes Please Order)
  • Counting Tolerance
    1 Sheet
  • Advantage
    Labor Saving, High Efficiency, Reducing The Secondary Contamination Of Tissue Paper
  • Control System
    PLC, Servo Motor
  • Pneumatic Cylinders
    Airtac Brand
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Export Wooden Package
  • Delivery Time
    30 Days
  • Payment Terms
  • Supply Ability
    50 Sets Per Month

PLC Control Facial Tissue Paper Machine Automatic Transfer 14 Logs Per Min

PLC Control Facial Tissue Paper Machine Automatic Transfer 14 Logs Per Min

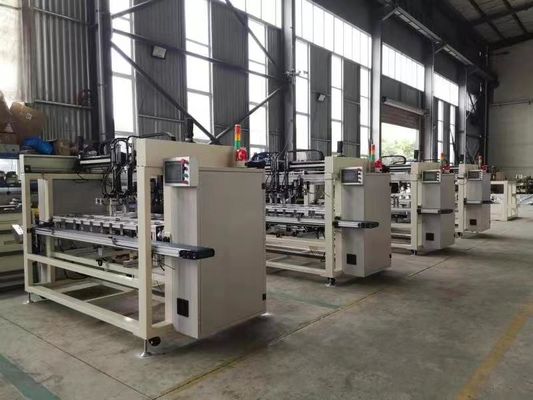

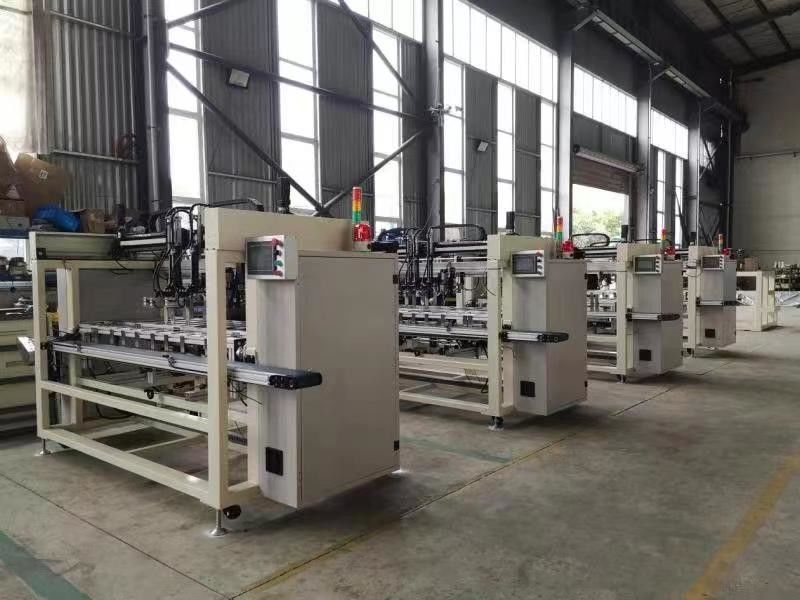

Automatic Transfer Facial Tissue Paper Machine is developed to connect facial tissue interfolder, log saw cutting machine and tissue paper packing machine to make an automatic facial tissue line. It will save labor, increase production efficiency and enhance your tissue products hygienic degree and your company image.


Compact design and easy adjustment help operators to have full control of functionality and production of the machine.


Technical Specification

FZJ-1550 Automatic Transfer Unit
Name Technical parameters

1. Machine Size

(L x W x H): 3100 x 1200 x 1600mm;
2. Paper log length 1250-2000mm(Other sizes please order, we will customize)
3.Stable production speed 12-14logs per min.
4. Counting

(1)Ink spraying (setting the counting sheets on the touch screen, while machine running, photocell detecting)

(2)Fluorescentic ink

(3)counting tolerance: 1sheet.

(4) Distance sensing (If sometimes folding is not very smooth and neat, distance sensing will have several sheets tolerance).

5. Tissue stack height(jaw opening min and max) 30-150mm
6.Tissue stack width(the depth of the jaws) 70-150mm
7.Compressed air ≥0.6Mpa
8.Power needed 220V±10V 50HZ 3KW
9.Noise Less than 60Db
10. Control part

PLC,Servo:XINJIE, Siemens

Touch Screen: Weinview

Pneumatic cylinders and units: Airtac

11. Features and usage It is automatic transfer unit between the interfolder and log saw. It reduces the labor intensity, save the labor force and increase the production efficiency; also it will avoid the secondary contamination caused by manual transfer.

PLC Control Facial Tissue Paper Machine Automatic Transfer 14 Logs Per Min 0



Why should we choose YouYuan as the automatic facial tissue paper transfer unit supplier?


YouYuan has been focusing on automatic facial tissue paper transfer unit for more than five years. We have exported automatic facial tissue paper transfer units to a lot of countries such as Mexico, Colombia, USA, Malaysia, Peru, Argentina, Poland, Australia, Egypt,etc.


With strict quality requirements for materials, high-precision processing equipment, production in strict accordance with national environmental protection standards, strict control of the entire production process, to ensure that your equipment quality is excellent and stable, delivery cycle is guaranteed!


We have strong corporate strength, rich experience, good service, recognition of many customers, choose YouYuan, is your wise choice!


After Sale Services


Spare Parts

YouYuan provides around-the-clock parts support to keep your napkin machines running.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Immediate response for non-stock parts requests
  • Professional team members dedicated to supporting your spare parts needs



We're here to get you started on the right foot.

Complete installation and start-up support

Start-up and calibration support

Staff training
