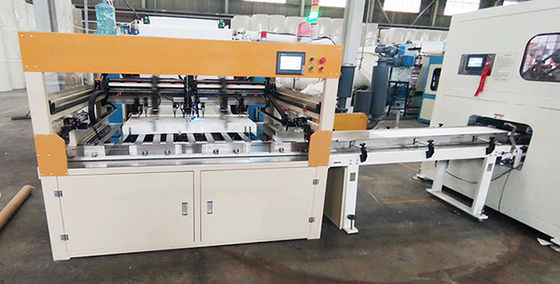

Wall Mounted Tissue Paper logs Transfer and Tissue Paper Cutting Machine
Wall Mounted Tissue Paper logs Transfer Unit and Tissue Paper Cutting Machine is developed for customers targeting high production capacity and excellent wall-mounted bag tissue paper. These two machines connect the tissue paper interfolder and automatic packing machine to make an automatic wall-mounted bag tissue paper production line.
It cuts with 1mm tolerance and automatic trimming. PLC and servo motors control ensures the cutting precision; All covered safe guarding and safe switches ensures the operation safety. Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
|Wall Mounted Tissue Paper logs Transfer Unit
1. Machine Size
|(L x W x H): 2832 x 1554 x 1698mm;
2. Machine weight
|About 1000 Kg
|3. Paper log length
|4. Paper log separating thickness
|5.Paper log folded width
|Ink spraying, Spraying covers 1 piece of paper
|7.Stable production speed
|5-7 logs per min.
|8. Separating sheets tolerance
|9. Compressed air
|10. Compressed air assumption
|220V±10V 50HZ 3.1KW
|Less than 60dB
|Welded frame and aluminum profile
|14. Mechanical transmission
Servo 0.75KW 2 sets;
Servo 0.4KW 3sets;
Step motor 1set;
Module+Sliding block, Rail cylinder push.
|15.Paper Log pushing mode
|Servo motor pushing(constant and synchronous push by servo ensuring the sheets number tolerance
|16. Control PLC, Servos, touch screen
|Delta from Taiwan
|17. Cylinder and accessories
|18. Features and usage
|It is automatic transfer unit between the tissue paper interfolder and log saw machine. It reduces the labor intensity, save the labor force and increase the production efficiency; also it will avoid the secondary contamination caused by manual paper logs transfer.
|Tissue Paper Cutting Machine
|Stable production speed: 60 cuts/min;
|Automatic knife grinding; time can be set.
Driving for paper feeding
|Servo motor driving, Siemens brand.
Left and right paper pressing structure with excellent anti-static flat belt;
N- fold hand towel(with or without sleeve packaging);
Cutting into equal sections, Automatic head and tail trimming(Min 2cm each side);
PLC program control, Siemens brand;
Full servo drive; servo motor brand is Siemens.
Automatic fault alarm;
|3 phase 5 wire,AC380V 50Hz 7.7KW;
Main machine:About 2010mm×1500×1972mm(L×W×H)；
|Baking paint for metal, machine drive in red color, main machine in creamy-white color, safety cover in creamy-white color;
