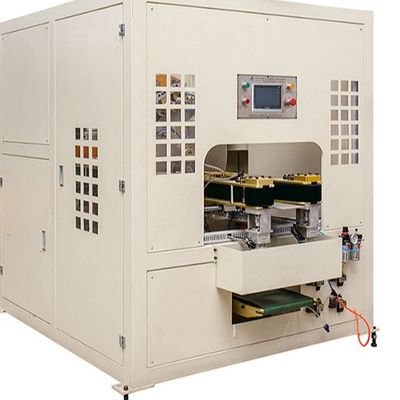

PLC Program Control Z-Fold Hand Towel Automatic Log Saw Machine 60 Cuts/Min
Description
Z-Fold Hand Towel Automatic Log Saw Machine is developed for customers targeting high production capacity and excellent hand towel logs cutting. It connects hand towel interfolder and automatic packing machine to make an automatic hand towel production line.
It cuts with 1mm tolerance and automatic trimming. PLC and servo motors control ensures the cutting precision; All covered safe guarding and safe switches ensures the operation safety. Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
Technical Specification
| YY-HT Z-Fold Hand Towel Automatic Log Saw Machine | |
|
Production speed |
Stable production speed: 60 cuts/min; |
|
Knife grinding |
Automatic knife grinding; time can be set. |
|
Driving for paper feeding |
Servo motor driving, Siemens brand. |
|
Paper pressing |
Left and right paper pressing structure with excellent anti-static flat belt; Cutting width is adjustable by leading screw, dividing ruler display; |
|
Cutting range |
N- fold hand towel(with or without sleeve packaging); Length: ＜2000mm Width: 100mm- 300mm； Height:0-100mm； |
|
Cutting mode |
Cutting into equal sections, Automatic head and tail trimming(Min 2cm each side); |
|
Control system |
PLC program control, Siemens brand; Inverter is Siemens brand; Touch screen is Siemens brand; |
|
Drive system |
Full servo drive; servo motor brand is Siemens. Drive link by excellent anti-static flat belt; |
|
Protective device |
Automatic fault alarm; IO system display and trouble shooting; Equipment safety cover and built-in iron mesh, Organic glass for outside observation; |
|
Power needed |
3 phase 5 wire,AC380V 50Hz 7.7KW; |
| Air pressure | 0.5-0.6Mpa(buyer prepares); |
|
Air consumption |
120-160L/min; |
|
Machine noise |
≤80dB； |
|
Machine size |
Main machine:About 2010mm×1500×1972mm(L×W×H)； Conveyor unit: About 2600mm×400×1000mm(L×W×H)； |
|
Machine weight |
2000KG |
|
Painting |
Baking paint for metal, machine drive in red color, main machine in creamy-white color, safety cover in creamy-white color; |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer before packaging and shipment.
FAQ
1. Why choose YouYuan as the hand towel automatic log saw machine for Maxi rolls supplier?
Because we are professional hand towel automatic log saw machine manufacturer with more than 15 years experience. And we have a dedicated team for your questions before sales and after sales process. We can give you a turn-key project solution for automatic hand towel logs cutting.
2. Will you provide spare parts for the machines we buy from you?
Yes. we will provide you some consumable spare parts free of charge for about one year, and we will ship the consumable parts to you together with the machines. In the future, you can still buy the parts from us.
3. Where is your factory located? Can we visit your factory?
Our factory is located at the Pengzhou Industrial Park, Chengdu, China. We welcome you to visit our factory and see our machines any time.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your business moving.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Satff training
Our products are sold all over the world, you can rest assured.
