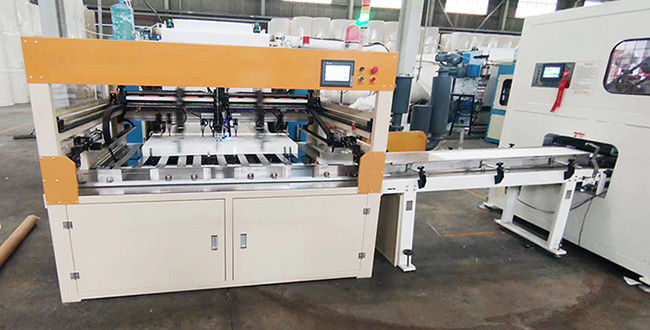

Big Bag Tissue Paper logs Transfer Unit and Log Saw Cutting Machine Line

Big Bag Tissue Paper logs Transfer Unit and Log Saw Cutting Machine Line

  • Tissue Paper Transfer Stable Production Speed
  • Servo Motor For Log Saw Contol
    5 Servo Motors
  • PLC Programme Control
  • Cutting Tolerance
    Zero Tolerance
  • Trimming
  • Safe Guarding
    All Covered
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    YY-T, YY-LS
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Export Wooden Package
  • Delivery Time
    30 Days
  • Payment Terms
  • Supply Ability
    50 Sets Per Month

Big Bag Tissue Paper logs Transfer Unit and Log Saw Cutting Machine Line

Big Bag Tissue Paper logs Transfer Unit and Log Saw Cutting Machine Line
Big Bag Tissue Paper logs Transfer Unit and Log Saw Cutting Machine are developed for customers targeting high production capacity and excellent big bag tissue paper. These two machines connect the tissue paper interfolder and automatic packing machine to make an automatic big bag tissue paper production line.
It will save labor, increase production efficiency and enhance your tissue products hygienic degree and your company image. It cuts with 1mm tolerance and automatic trimming. PLC and servo motors control ensures the cutting precision;  All covered safe guarding and safe switches ensures the operation safety. Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
Technical Specification

Big Bag Tissue Paper Logs Transfer Unit
                   Name Technical parameters

     1. Machine Size

(L x W x H): 2832 x 1554 x 1698mm;

     2. Machine weight

About 1000 Kg
    3. Paper log length




4. Paper log separating thickness 100-420mm
5.Paper log folded width 70-110mm
6.Counting mode Ink spraying, Spraying covers 1 piece of paper
7.Stable production speed 5-7 logs per min.
8. Separating sheets tolerance ±1mm
9. Compressed air ≥0.6Mpa
10. Compressed air assumption 0.2m³/min
11.Power needed 220V±10V 50HZ 3.1KW
12.Noise Less than 60dB
13.Machine Structure Welded frame and aluminum profile
14. Mechanical transmission

5 Servos.

Servo 0.75KW 2 sets;

Servo 0.4KW 3sets;

Step motor 1set;

Module+Sliding block, Rail cylinder push.

15.Paper Log pushing mode Servo motor pushing(constant and synchronous push by servo ensuring the sheets number tolerance
16. Control PLC, Servos, touch screen Delta from Taiwan
17. Cylinder and accessories Airtac brand
18. Features and usage It is automatic transfer unit between the tissue paper interfolder and log saw machine. It reduces the labor intensity, save the labor force and increase the production efficiency; also it will avoid the secondary contamination caused by manual paper logs transfer.


Log Saw Cutting Machine

Production speed

Stable production speed: 60 cuts/min;

Knife grinding

Automatic knife grinding; time can be set.

Driving for paper feeding

Servo motor driving, Siemens brand.

Paper pressing

Left and right paper pressing structure with excellent anti-static flat belt;
Cutting width is adjustable by leading screw, dividing ruler display;

Cutting range

N- fold hand towel(with or without sleeve packaging);
Length: <2000mm
Width: 100mm- 300mm;

Cutting mode

Cutting into equal sections, Automatic head and tail trimming(Min 2cm each side);

Control system

PLC program control, Siemens brand;
Inverter is Siemens brand;
Touch screen is Siemens brand;

Drive system

Full servo drive; servo motor brand is Siemens.
Drive link by excellent anti-static flat belt;

Protective device

Automatic fault alarm;
IO system display and trouble shooting;
Equipment safety cover and built-in iron mesh, Organic glass for outside observation;

Power needed

3 phase 5 wire,AC380V 50Hz 7.7KW;
Air pressure 0.5-0.6Mpa(buyer prepares);

Air consumption


Machine noise


Machine size

Main machine:About 2010mm×1500×1972mm(L×W×H);
Conveyor unit: About 2600mm×400×1000mm(L×W×H);

Machine weight



Baking paint for metal, machine drive in red color, main machine in creamy-white color, safety cover in creamy-white color;



1. Where is your factory located?

   Our factory is located in Chengdu, China.


2. What countries have you been exported to?

   We have been exporting our machines to Poland, Maxico, USA, Peru, Colombia, Argentina, Middle East countries and so on.Can w


3. Whbig at are your main products?

   We are professional manufacturer for facial tissue machines, paper napkin machines, hand towel machines and log saw cutting machines and pocket tissue paper machines.

After Sale Services
Spare Parts


YouYuan provides around-the-clock parts support to keep your business moving.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Expediting for non-stock parts requests
  • Professional team members dedicated to supporting your parts needs




We're here to get you started on the right foot.

  • Complete installation and start-up support

  • Start-up and calibration support

  • Training
