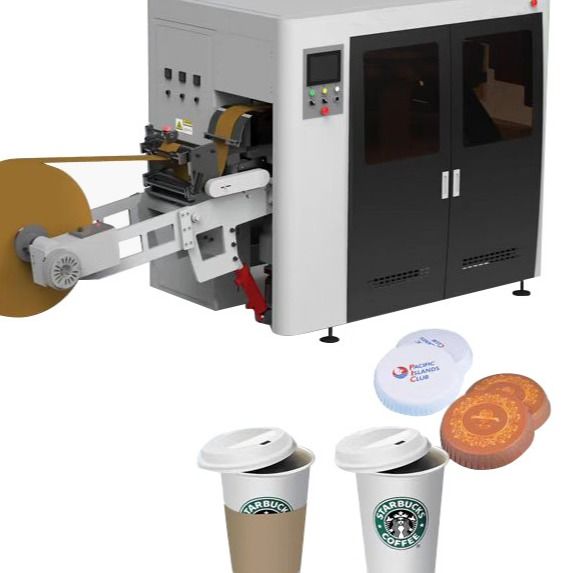

PLC Program Control Automatic Paper Lid Forming Machine 60-90 Pcs Per Min
Description
Automatic Paper Lid Forming Machine is developed to produce paper lids of different size. It can work together with automatic paper cup machine.
The equipment adopts advanced PLC control, which makes the machine more speed and stable. In addition, automatic functions such as safe and humanized design, precise cutting, one-time forming, automatic fault alarm, counting, and paper detection are adopted. It will save labor, increase production efficiency and make your finished products more customer-friendly.
Technical Specification
| Model | YY-BGJ-180 Automatic Paper Lid Forming Machine |
| Applicable paper | Single and double coated paper, coated, Glazing coated paper (250-350g/m2) |
| Molding size |
height (8-15)mm, diameter (Φ55-Φ145)mm
|
| Forming Speed | 60-90pcs/min |
| Working voltage | AC380V/50HZ |
| Equipment power | 17KW |
| Air source | Air consumption 0.02m3 / min, working pressure 0.3Mpa |
| Equipment size | L3250xW1400xH1950(mm) |
| Total weight | 2900KG |
| Machine production |
This equipment uses one-time molding and automatic paper feeding, creasing, embossing, punching, feeding plate to die, heating, folding, knurling, pushing, counting and other series of automatic functions. |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin machines running.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
Our products are sold all over the world, you can rest assured.
