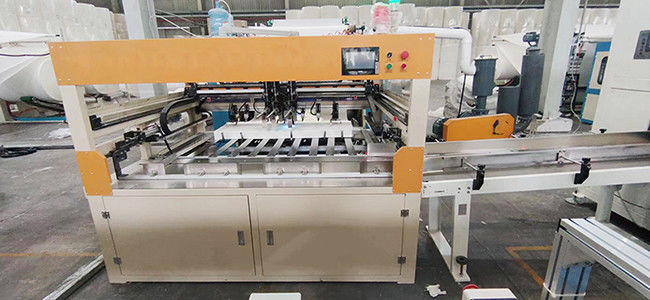

PLC Controlled Tissue Paper Log Transfer Unit Tissue Converting Machine 5-7 Logs
Description

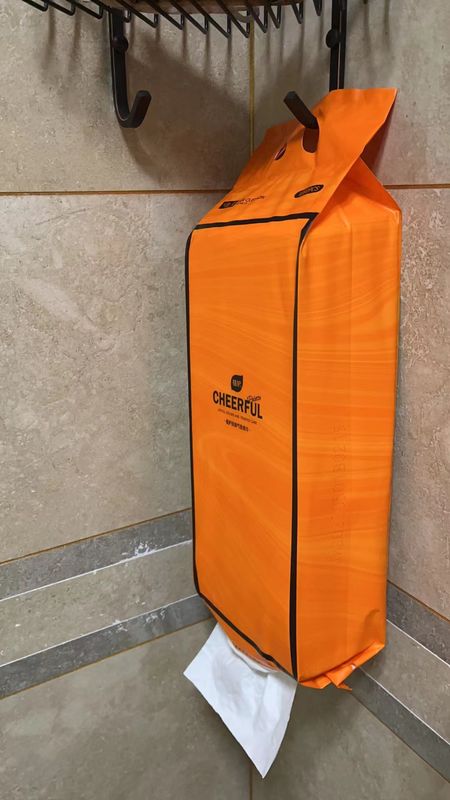

Tissue Paper Log Transfer Unit Tissue Converting Machine is developed to connect facial tissue paper interfolder and automatic log saw cutting machine to make an automatic wall-mounted bag tissue paper production line. It will save labor, increase production efficiency and enhance your tissue products hygienic degree and your company image.
Technical Specification
| Automatic Tissue Paper Log Transfer Unit | |
| Name | Technical parameters |
|
(L x W x H): 2832 x 1554 x 1698mm; |
|
About 1000 Kg |
| 3. Paper log length |
1000mm-1350mm(6lines) 1300mm-1550mm(7lines) 1550mm-1650mm(8lines) |
| 4. Paper log separating thickness | 100-420mm |
| 5.Paper log folded width | 70-110mm |
| 6.Counting mode | Ink spraying, Spraying covers 1 piece of paper |
| 7.Stable production speed | 5-7 logs per min. |
| 8. Separating sheets tolerance | ±1mm |
| 9. Compressed air | ≥0.6Mpa |
| 10. Compressed air assumption | 0.2m³/min |
| 11.Power needed | 220V±10V 50HZ 3.1KW |
| 12.Noise | Less than 60dB |
| 13.Machine Structure | Welded frame and aluminum profile |
| 14. Mechanical transmission |
5 Servos. Servo 0.75KW 2 sets; Servo 0.4KW 3sets; Step motor 1set; Module+Sliding block, Rail cylinder push. |
| 15.Paper Log pushing mode | Servo motor pushing(constant and synchronous push by servo ensuring the sheets number tolerance |
| 16. Control PLC, Servos, touch screen | Delta from Taiwan |
| 17. Cylinder and accessories | Airtac brand |
| 18. Features and usage | It is automatic transfer unit between the tissue paper interfolder and log saw machine. It reduces the labor intensity, save the labor force and increase the production efficiency; also it will avoid the secondary contamination caused by manual paper logs transfer. |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer for confirmation and approval before packaging and shipment
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin machines running.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
Our products are sold all over the world, you can rest assured.
