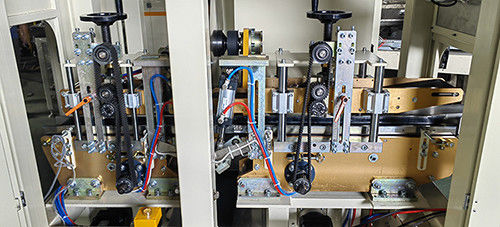

Facial Tissue Paper Cutting Machine PLC Programme Control 180cuts/Min
Description
Facial Tissue Cutting Machine is developed for customers targeting high production capacity and excellent facial tissue or hand towel products. It connects facial tissue interfolder and packing machine to make an automatic production line.
It cuts with zero tolerance and automatic trimming. PLC and servo motors control ensures the cutting precision; All covered safe guarding and safe switches ensures the operation safety. Compact design and easy adjustment help operators to have full control of functionality and production of the machine.
Technical Specification
| YY-LS Facial Tissue Paper Cutting Machine |
|
1. Operation speed:0-180cuts/min； 2. Automatic sharpening knife and lubrication device；Touch screen setting the interval; 3. when there is no paper feeding in for some time, the machine will slow down and the blade will stop at safe position; 4. Cylinder adjusting up and down device to cut different thickness, scale display, easy to adjust; 5. Applicable cutting width:Length: 100-220mm,height:40-120mm; Width:60-100mm; 6. PLC control, frequency speed control, touch screen control; 7. Driving system: timing belts, V- belts and conveyer belts; 8. Machine stop automatically while fault occurs; 9. Jogging, Emergency stop devices. 10. Installed power:AC380V 50HZ 8.2KW; 11. Air pressure:0.6-0.8Mpa(buyer prepares it)； 12. Cutting size tolerance: 0mm(middle), 1mm(first one and last one); 13. All marks and signs are in both English and Chinese; 14. All trim exhaust and collector. 15. All driving parts have security guards; 16. Brand photocell. 17. All switches are Schneider. |
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your business moving.
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Training
Our products are sold all over the world, you can rest assured.
